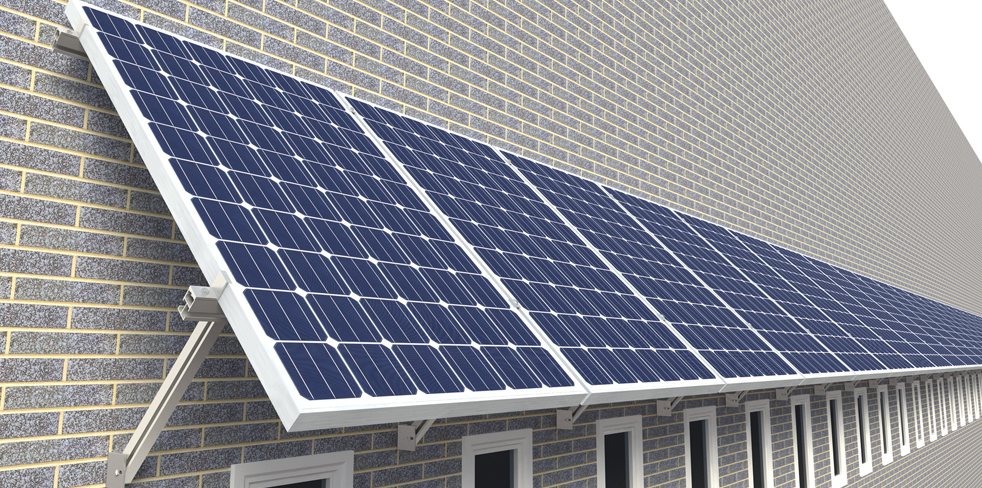

In addition to utilising roof spaces, there is a growing popularity in applying solar PV to building facades.

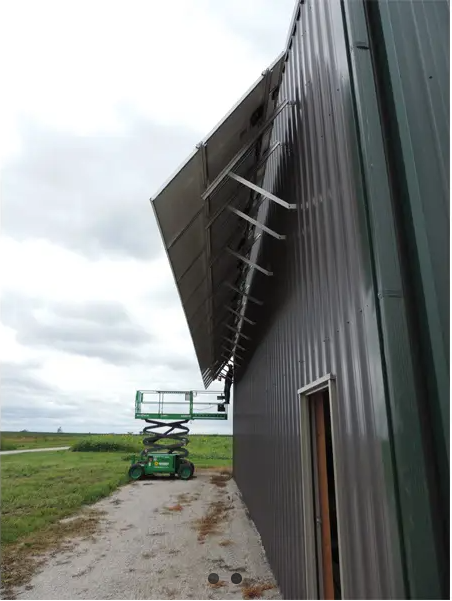

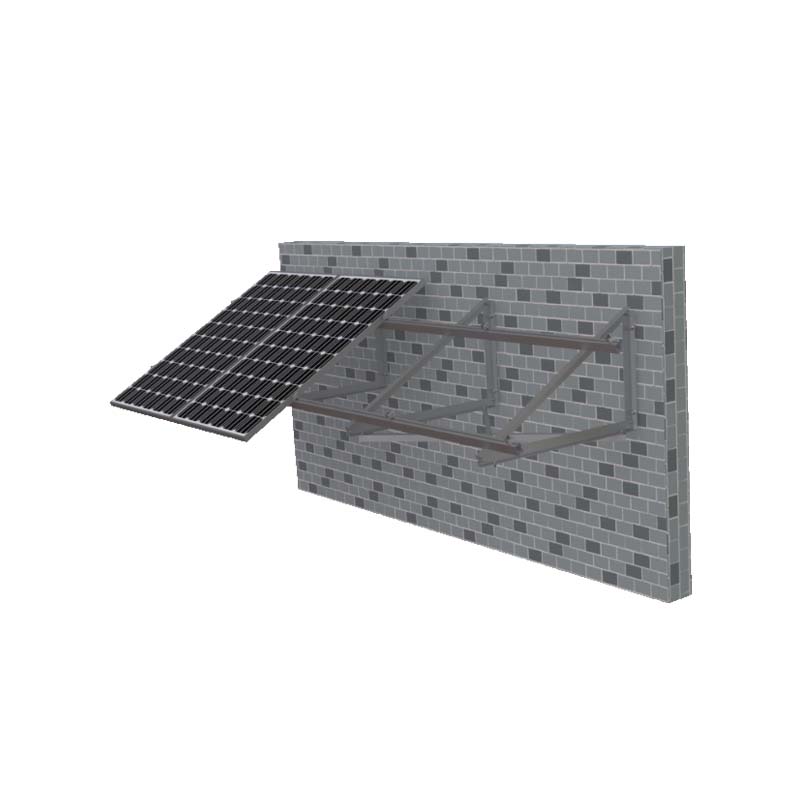

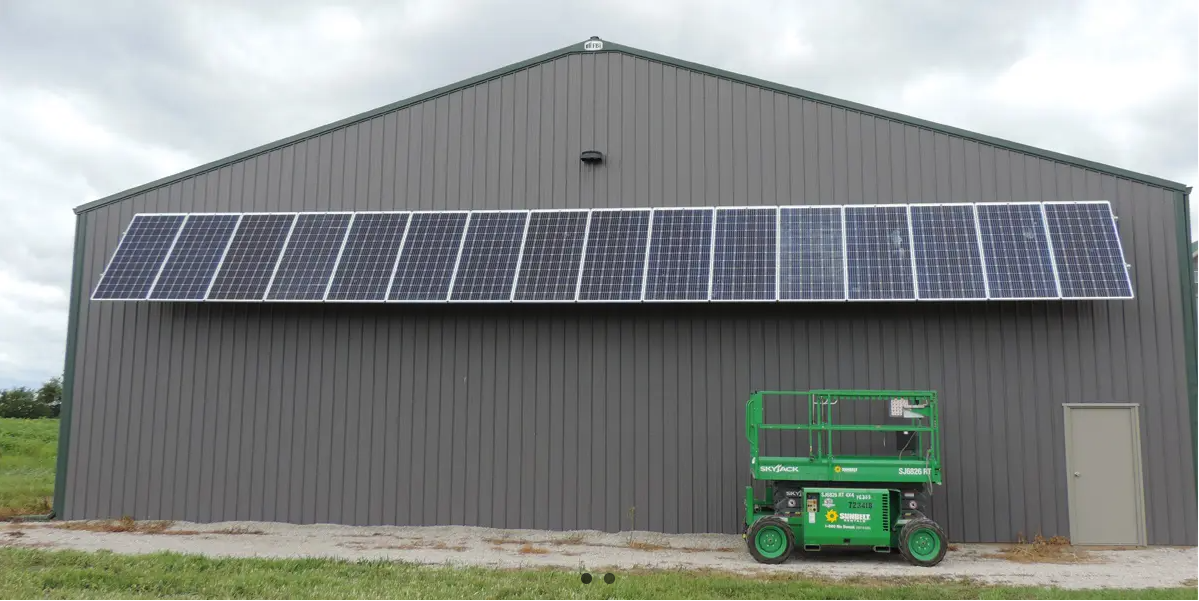

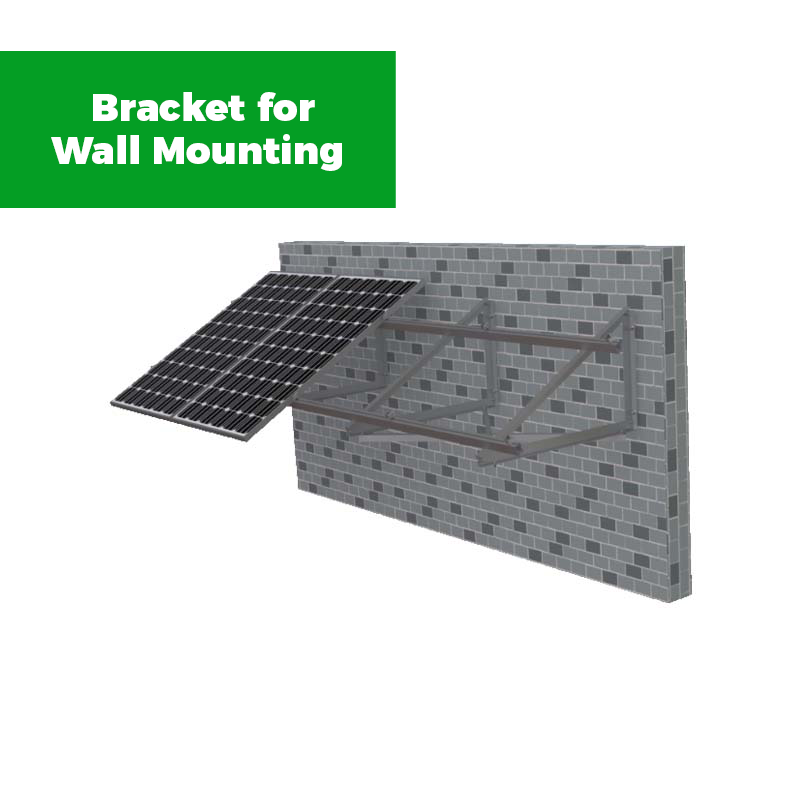

It’s easy and efficient to create a wall mounted system, either by fixing the solar panels flush to the wall or introducing an additional pitch via an elevated frame, which can be produced to any required specifications.
| Technical Data | |
| Type | Wall Mounting System |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frameless |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |

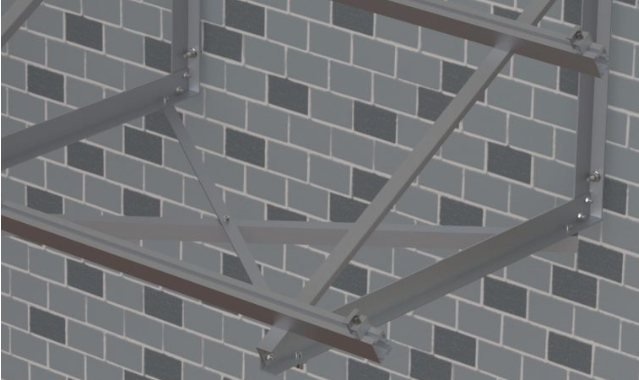

Stell. Concrete. Brick. Timber. It'll work for all types of façades.
It doesn’t matter if the main structure or wall cladding is made from steel, concrete, brick or even timber, we’ll specify the correct type and length of fixing for your project.
Choosing the right solar panel orientation.

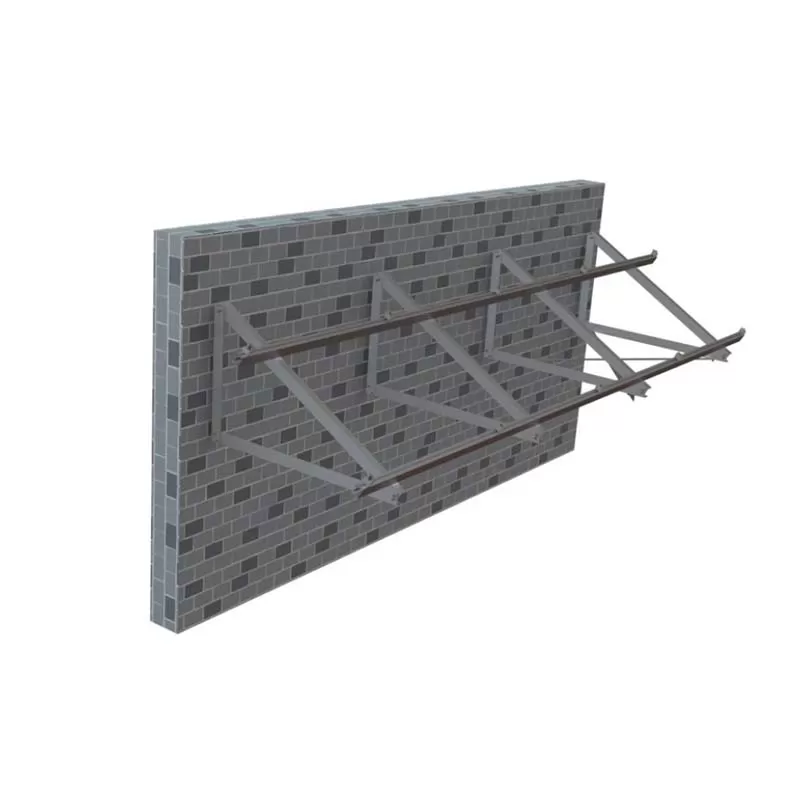

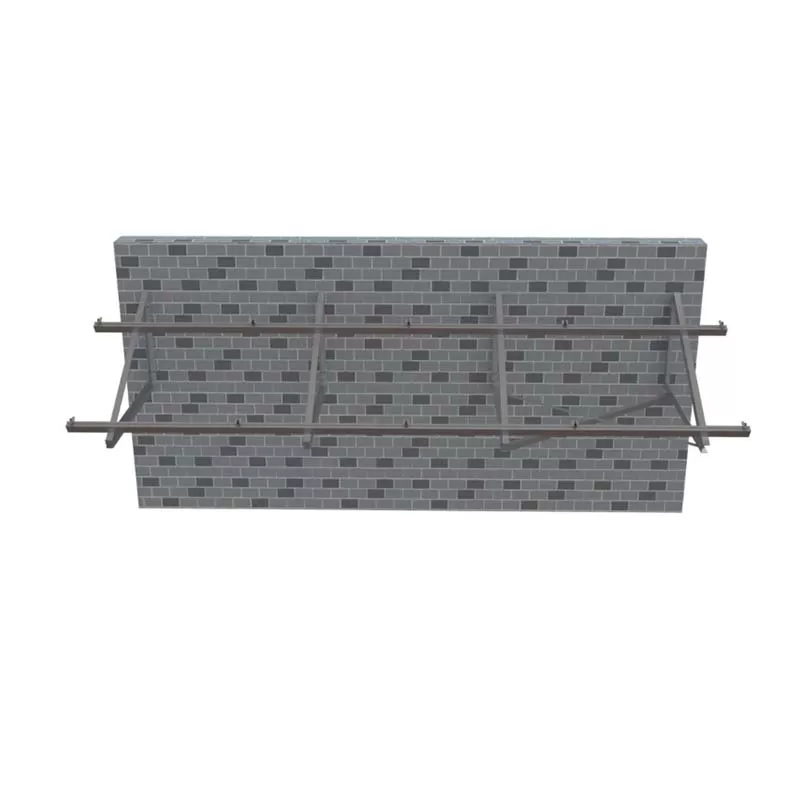

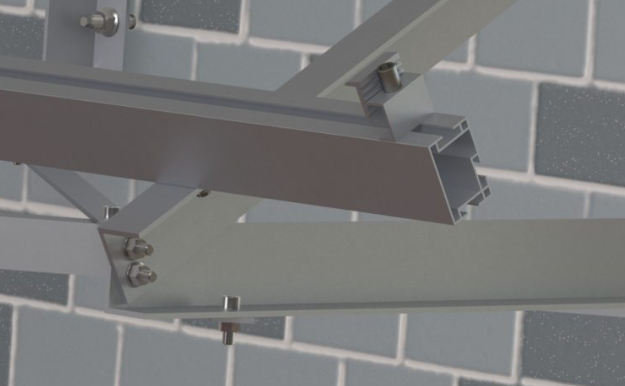

This system can easily accommodate modules in either landscape or portrait orientation. A simple triangle is produced from aluminium, which allows the module to be clamped in its quarter zones along its length.
