| Technical Data | |
| Type | Roof solar mounting |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frameless |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |

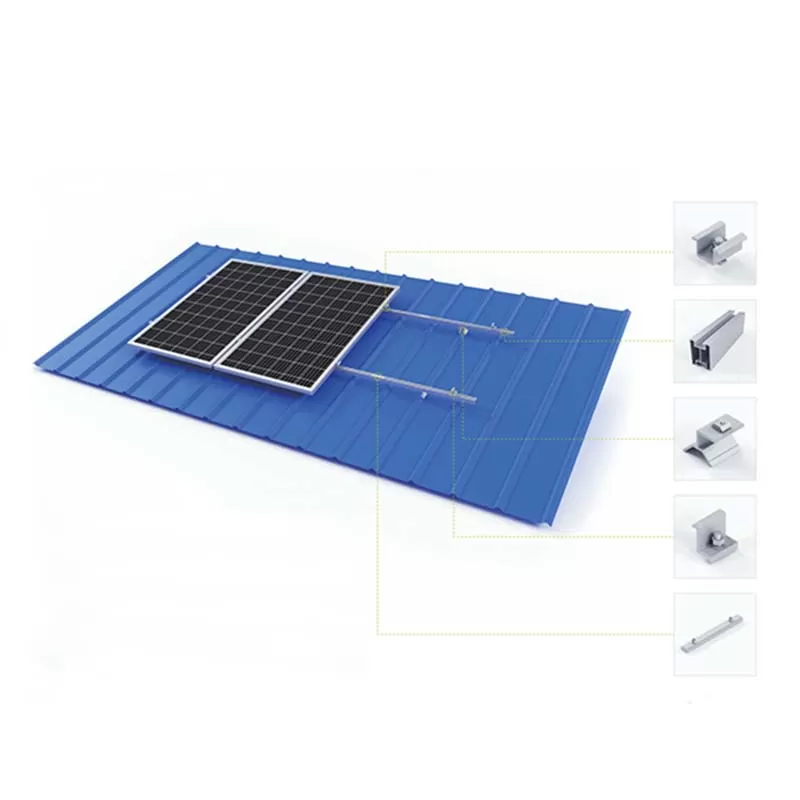

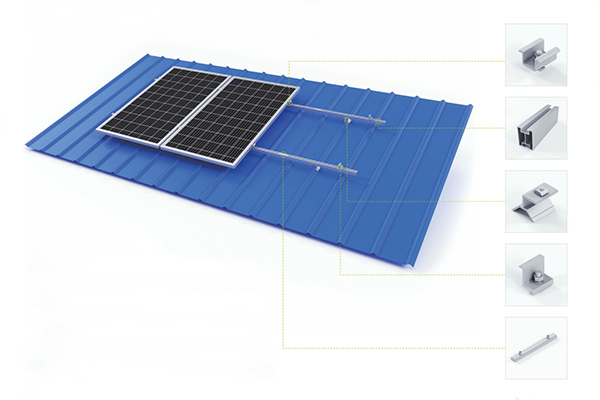

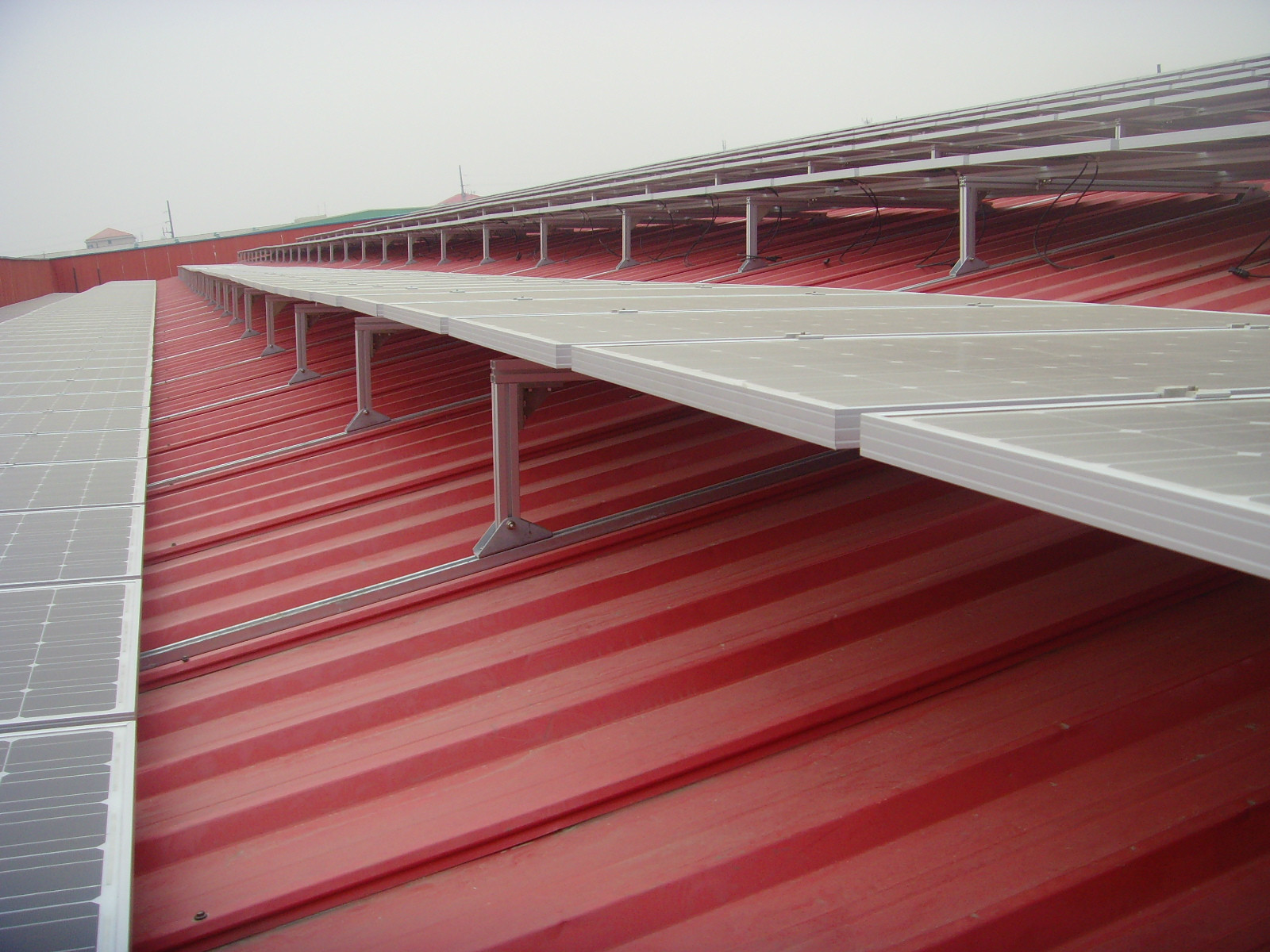

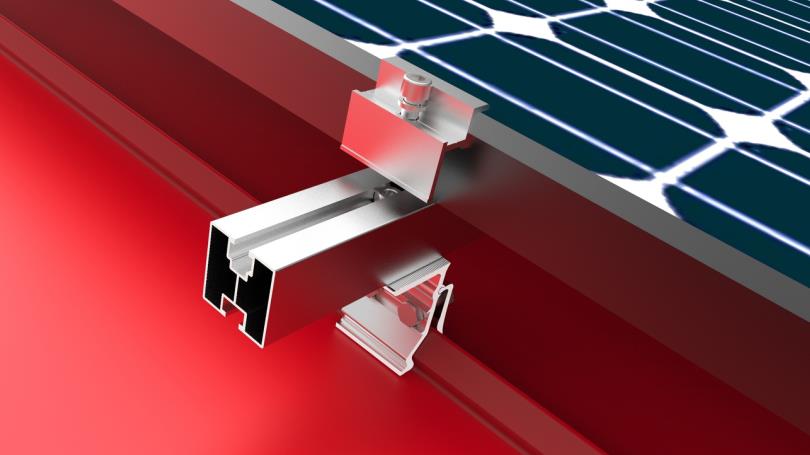

Singfo Roof Solar Mounting System is engineered for the maximum flexibility possible in designing and planning for various metal roof solar system installation. It is applicable to install the usual module to flush with the pitched roof. Using our innovative Rail and pre-assembled components like tilt-in T Module, clamp kit and various holding devices (like hanger bolt and L bracket etc.) our Metal Roof Mounting makes the installation easy and quick to save your labor cost and time.

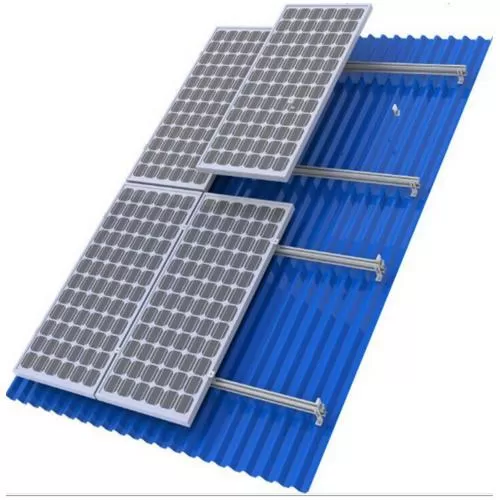

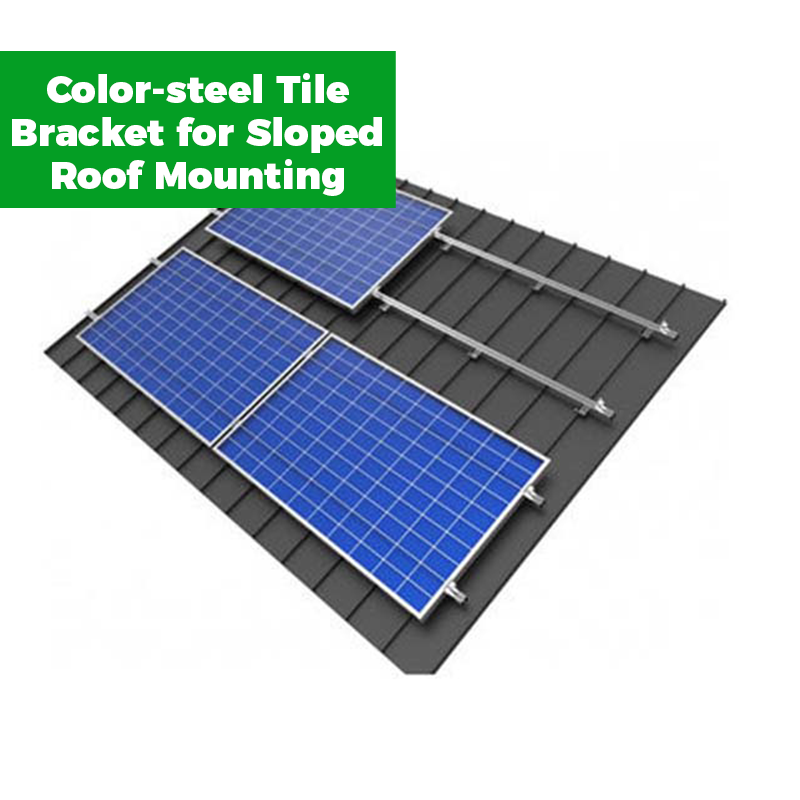

This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs.
