Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.
With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability.

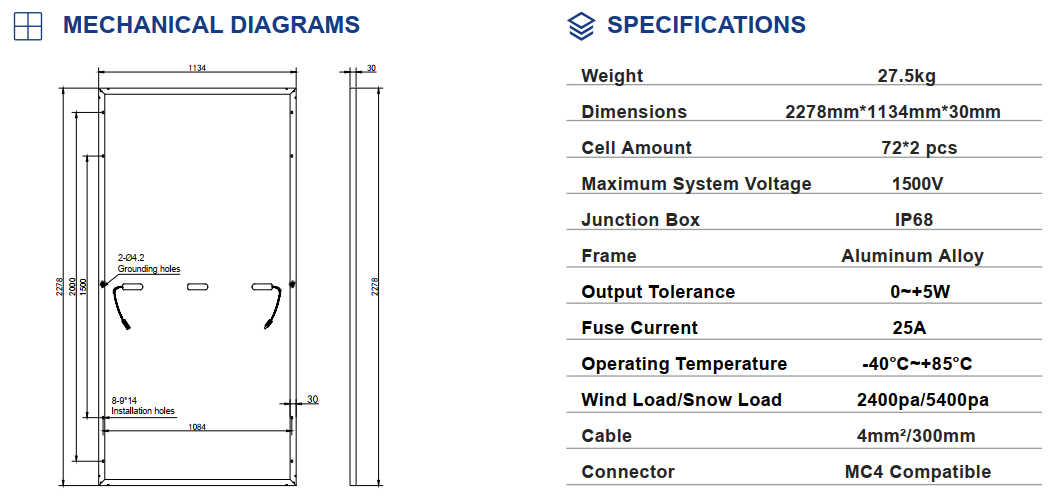

| Cell Type | Monocrystal 182 |
| No. of Cells | 144(6× 24) |
| Module Dimension | 2278*1134*30 mm |
| Net Weight | 27.5Kgs |
| Maximum power (Pmax/W) | 580W |
| Open Circuit Voltage-Voc(V) | 51.4 |
| Short Circuit Current-lsc(A) | 14.35 |
| Maximum Power Voltage (Vmp/V) | 42.87 |
| Maximum Power Current (Imp/A) | 13.53 |
Glass
Anti Reflective Glass
Self-cleaning function
Module efficiency is increased by 2%
Service life is as long as25years(30years optional)
Translucency of normal luminance is increased by 2%
Solar Cell
Anti-PID
Appearance Consistency
High Efficiency PV Cells
Color sorting ensure consistent appearance on each module
Frame
Conventional frame
Seal-lip designglue injection
Silver or black frames are optional
Serrated-clip design tensile strength
Boost bearing capability and prolong service life
Junction box
Heat dissipation
Long service life
IP68 protection level
Quality diode ensures module running safety
Conventional standalone edition and engineering custom edition
Project Cases
ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF2-580-600W | |||||
| Maximum power (Pmax/W) | 560 | 565 | 570 | 575 | 580 | |
| Open Circuit Voltage-Voc(V) | 50.8 | 49.75 | 49.95 | 50.10 | 50.25 | |
| Short Circuit Current-lsc(A) | 14.06 | 13.97 | 14.05 | 14.12 | 14.19 | |
| Maximum Power Voltage (Vmp/V) | 42.23 | 41.80 | 41.97 | 42.12 | 42.28 | |
WANT TO SPEAK TO US?
We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.
Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
