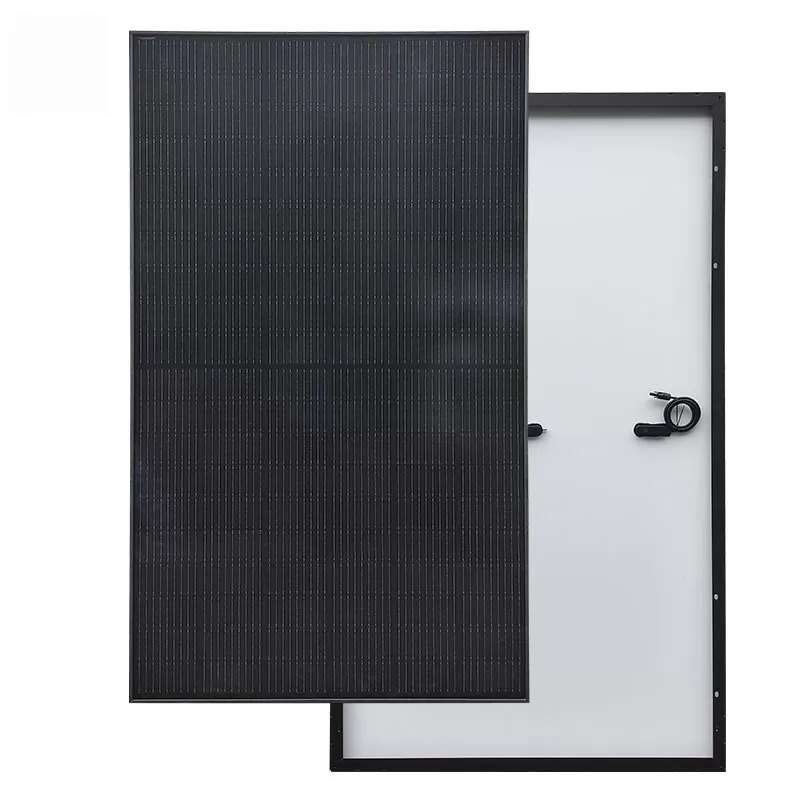

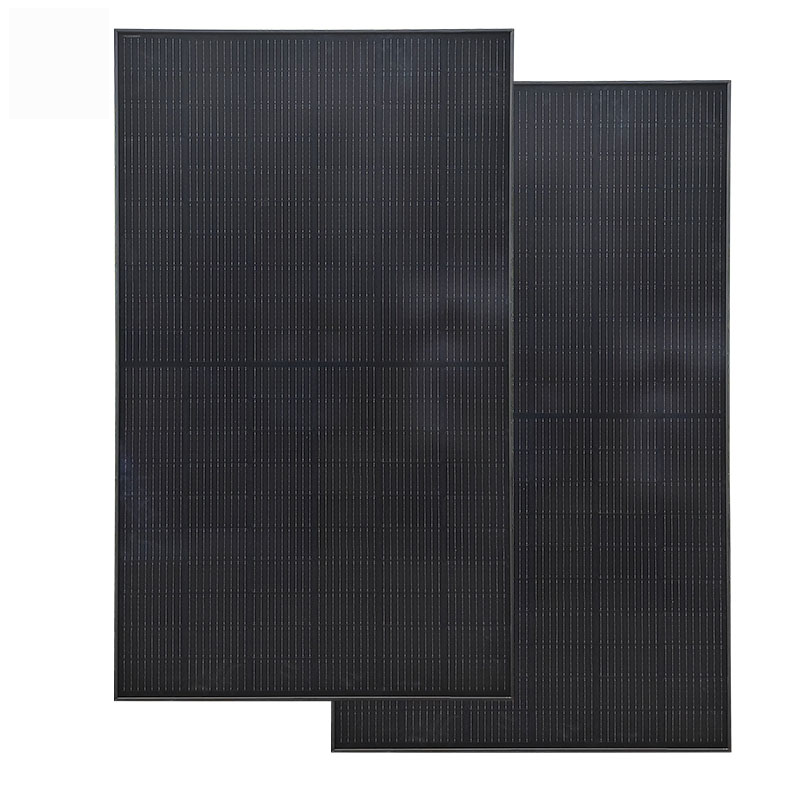

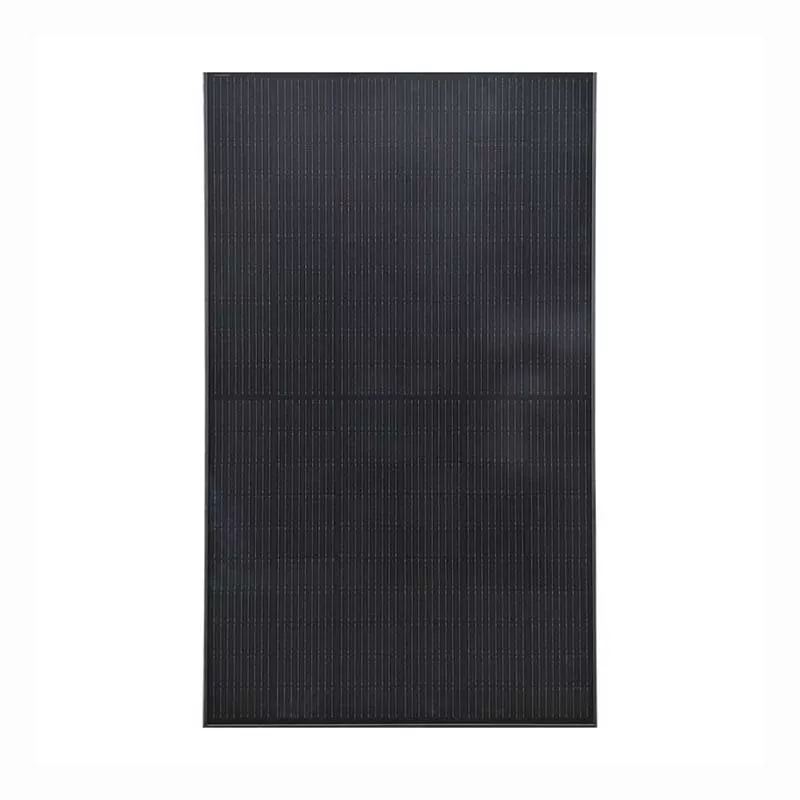

Singfo solar BLACK series is produced with high efficiency multi-busbar cells, which can reduce the module internal power loss to improve its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the module reliability. Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused by shadow effect.
Excellent anti-LeTID &anti-PID performance. Low power degradation, high energy yield

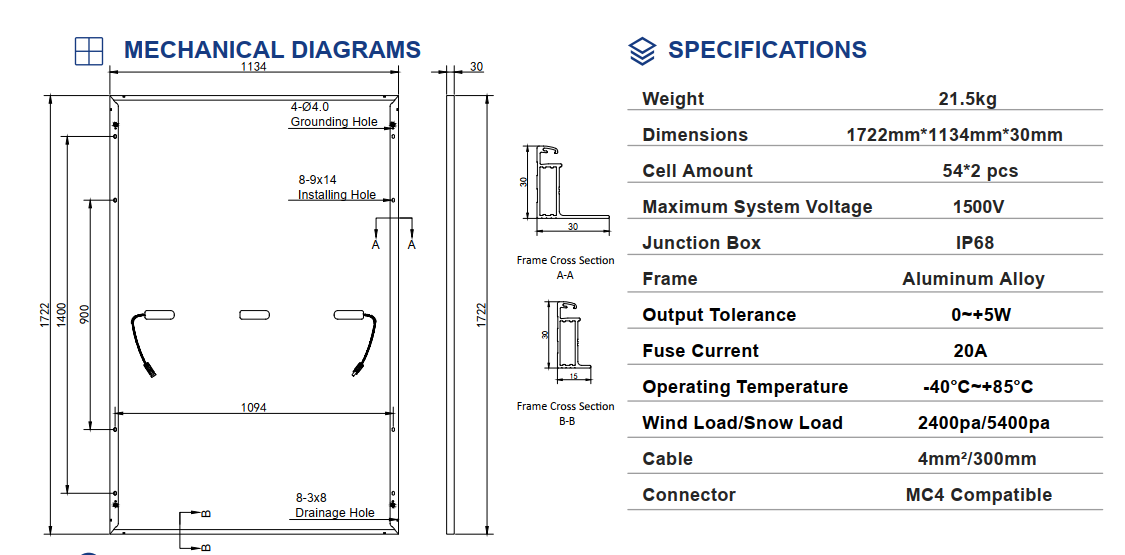

| Technical Data | |
| Cell Type | Monocrystal 182 |
| No. of Cells | 108(6×18) |
| Module Dimension | 1722*1134*35mm |
| Net Weight | 21.5Kgs |
| Maximum power (Pmax/W) | 410W |
| Open Circuit Voltage-Voc(V) | 37.23 |
| Short Circuit Current-lsc(A) | 14.00 |
| Maximum Power Voltage (Vmp/V) | 30.95 |
| Maximum Power Current (Imp/A) | 13.25 |
Glass
Anti Reflective Glass
Self-cleaning function
Module efficiency is increased by 2%
Service life is as long as25years(30years optional)
Translucency of normal luminance is increased by 2%
Solar Cell
Anti-PID
Appearance Consistency
High Efficiency PV Cells
Color sorting ensure consistent appearance on each module
Frame
Conventional frame
Seal-lip designglue injection
Silver or black frames are optional
Serrated-clip design tensile strength
Boost bearing capability and prolong service life

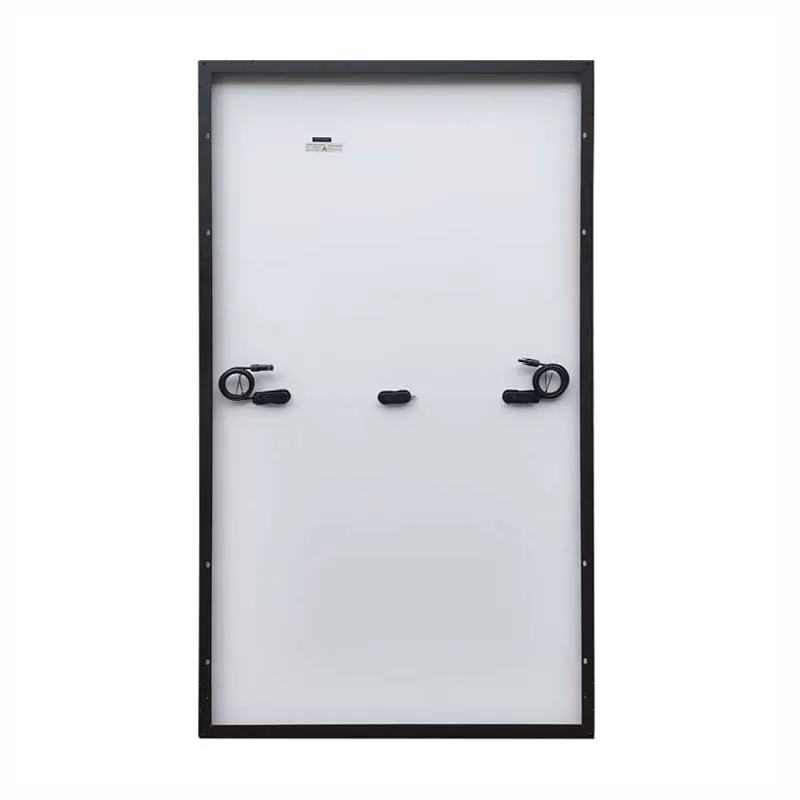

Junction box
Heat dissipation
Long service life
IP68 protection level
Quality diode ensures module running safety
Conventional standalone edition and engineering custom edition
Project Cases
ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF2-400-420WBL | |||||
| Maximum power (Pmax/W) | 400 | 405 | 410 | 415 | 420 | |
| Open Circuit Voltage-Voc(V) | 39.96 | 37.1 | 37.23 | 37.36 | 37.45 | |
| Short Circuit Current-lsc(A) | 13.82 | 13.91 | 14 | 14.09 | 14.18 | |
| Maximum Power Voltage (Vmp/V) | 30.65 | 30.8 | 30.95 | 31.1 | 31.25 | |
| Maximum Power Current (Imp/A) | 13.06 | 13.15 | 13.25 | 13.35 | 13.45 | |
| Module Efficiency (%) | 20.5 | 20.7 | 21 | 21.3 | 21.5 | |
WANT TO SPEAK TO US?
We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.
Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
