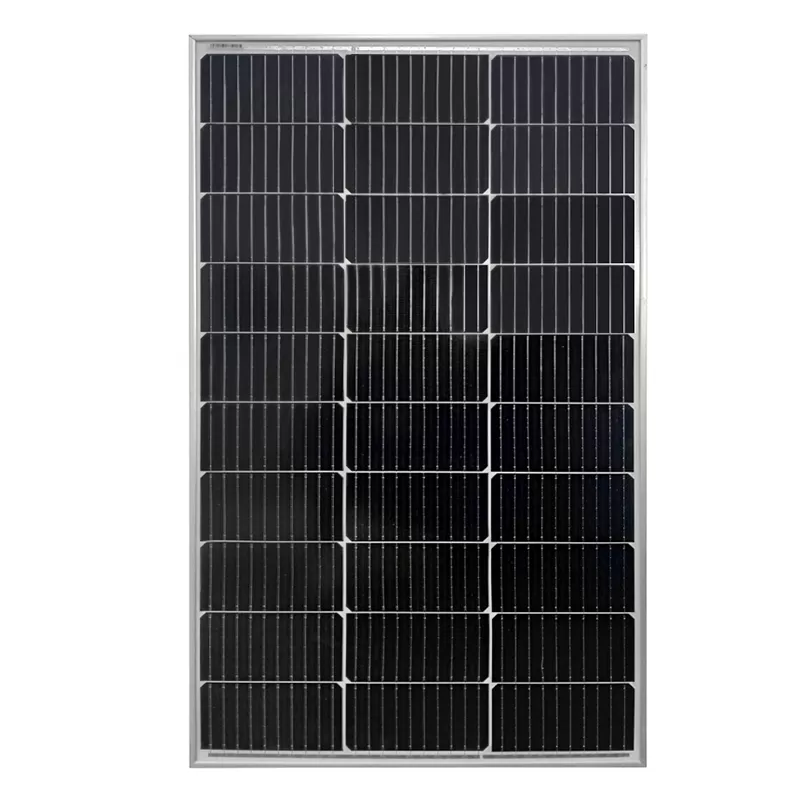

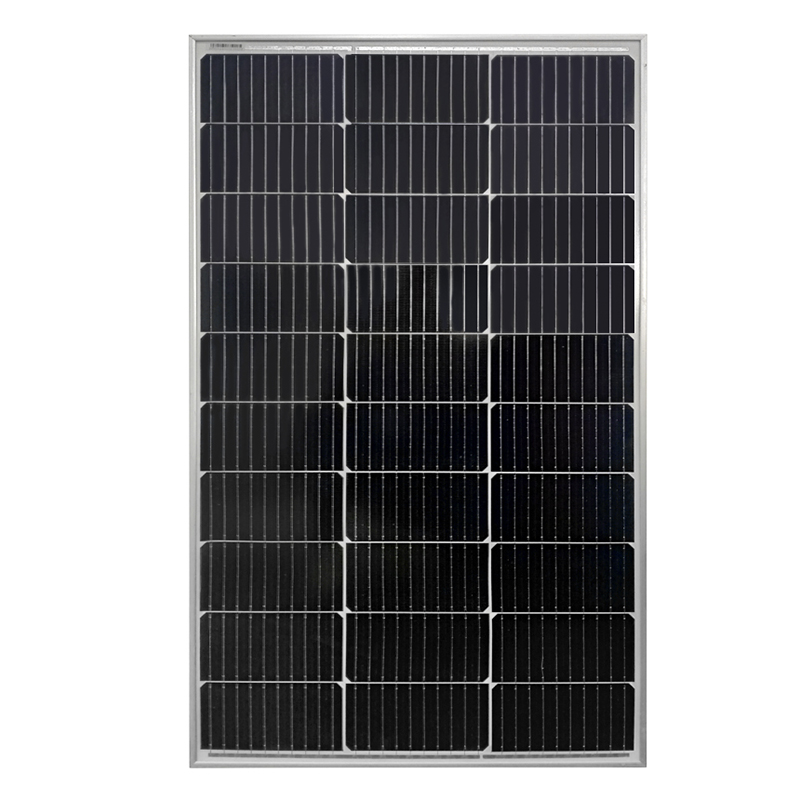

SF1-110W Solar Panels Monocrystalline Multi-busbar Solar Module

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

OVERVIEWPRODUCT SPECIFICATION


Technical Data
Cell TypeMonocrystal 182
No. of Cells30(3× 10)
Module Dimension970*580*30mm
Net Weight6.5Kgs
Maximum power (Pmax/W) 110W
Open Circuit Voltage-Voc(V)20.16
Short Circuit Current-lsc(A)  7.2
Maximum Power Voltage (Vmp/V)   16.8
Maximum Power Current (Imp/A)6.55


With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability.


SF1-80W Solar Panels Monocrystalline Multi-busbar Solar Module


SF1-460W Solar Panels Monocrystalline Half Cell Panel

Glass

Anti Reflective Glass

Self-cleaning function

Module efficiency is increased by 2%

Service life is as long as25years(30years optional)

Translucency of normal luminance is increased by 2%


Solar Cell

Anti-PID

Appearance Consistency

High Efficiency PV Cells

Color sorting ensure consistent appearance on each module


Frame

Conventional frame

Seal-lip designglue injection

Silver or black frames are optional

Serrated-clip design tensile strength

Boost bearing capability and prolong service life


Junction box

Heat dissipation

Long service life

IP68 protection level

Quality diode ensures module running safety

Conventional standalone edition and engineering custom edition
