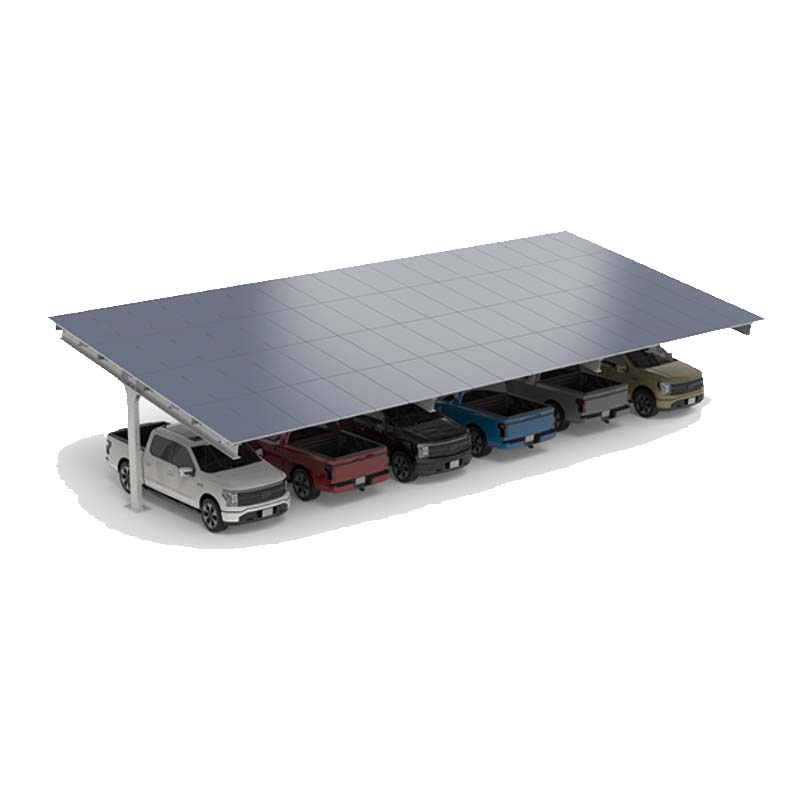

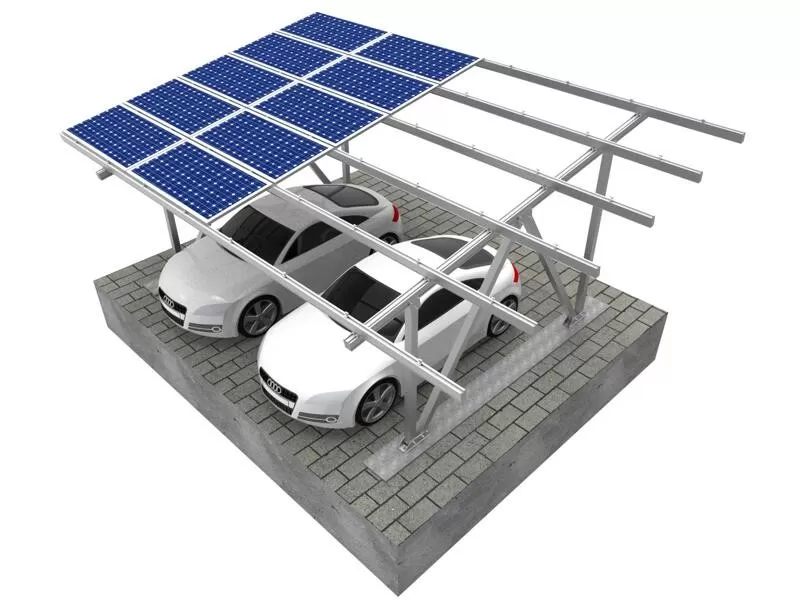

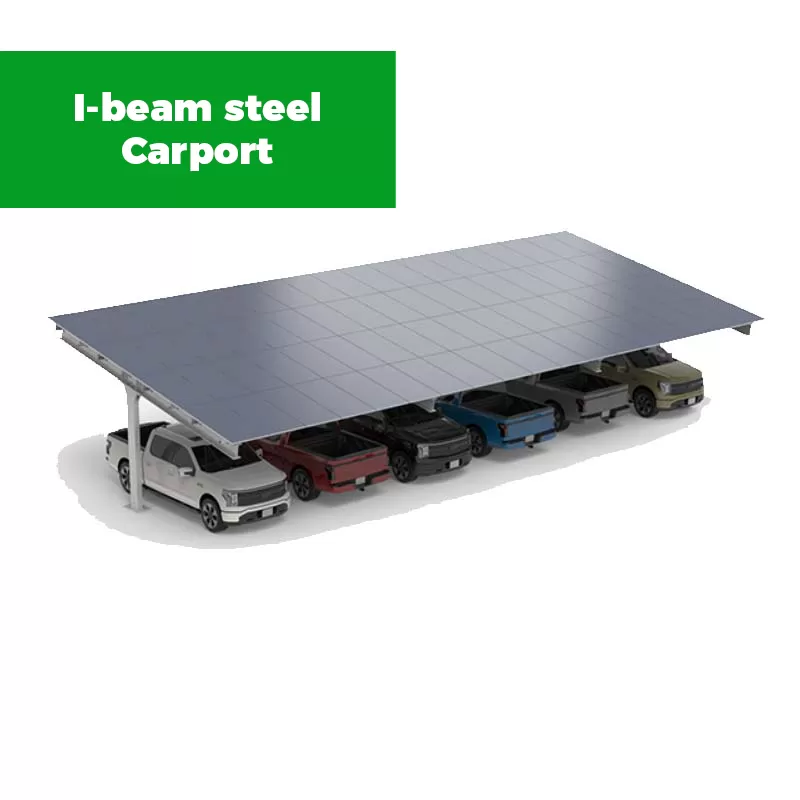

I-beam steel Bracket for Carport Mounting System

I-beams are commonly used in industrial and commercial photovoltaic power stations, which is a kind of section with better mechanical properties and good economical section steel.

Its characteristic flange Wide and large lateral rigidity. Strong bending resistance.

The two surfaces of the rim are parallel to each other so that the connection and addition work and installation are simple. Compared with general section steel, Low cost,high precision, low residual stress, no requires expensive, welding materials and weld seam inspection, saving About 30% of the steel structure production cost.


OVERVIEW


Technical Data
TypeCarport Mounting System
ColorNatural or Customized
TreatmentAnodized, Galvanized
Structural materialsAluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Install Angle0-60 degree
Ground Clearance≥0.15m
Wind load130mph(60m/s)
Snow Load30psf(1.4kN/m2)
Applicable ModuleFramed, frameless
Module OrientationPortrait, landscape
Array LayoutAccording to the actual situation

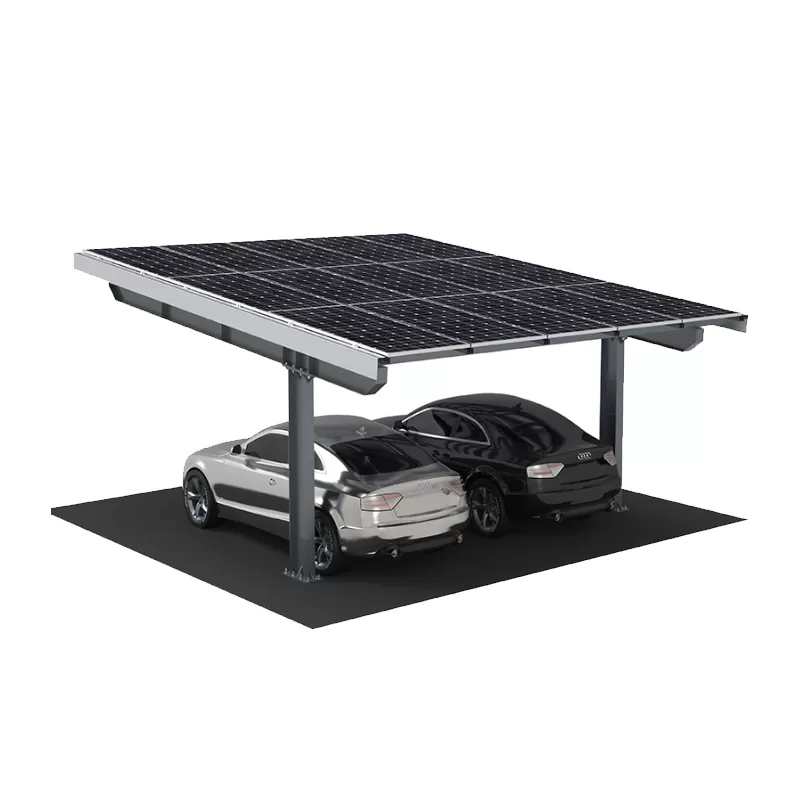

Carport Solar Mounting System is engineered for commercial and residential. Both aluminium series and galvanized series are available. And our system to all types solar panel type. Widely favored by customers with beautiful appearance design and surface treatment; Singfo solar abandons the traditional method of rubberizing and uses a uniquely designed sealing strip to waterproof it, which solves looseness of the rubber strip and water leakage and other problems.



I-beam steel Bracket for Carport Mounting SystemI-beam steel Bracket for Carport Mounting SystemI-beam steel Bracket for Carport Mounting System


The frame structure of the photovoltaic carport can be made of aluminum, stainless steel and other materials; which is durable and corrosion-resistant, ensuring the high durability and service life of the material;

Own waterproof system, maintenance-free, strong wind resistance;

Green and environmental protection,recyclable;




The construction cost is relatively low;

No on-site cutting is required, and accessories are pre-installed before leaving the factory,

It can be matched with any foundation, such as ground bolts or cement foundation; any angle can be customized according to project requirements.

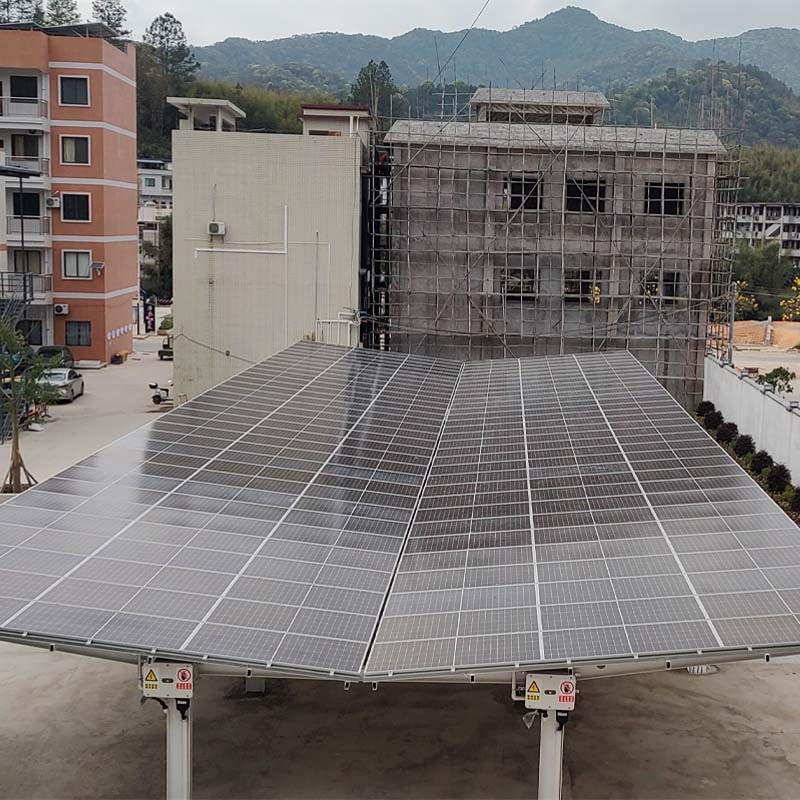

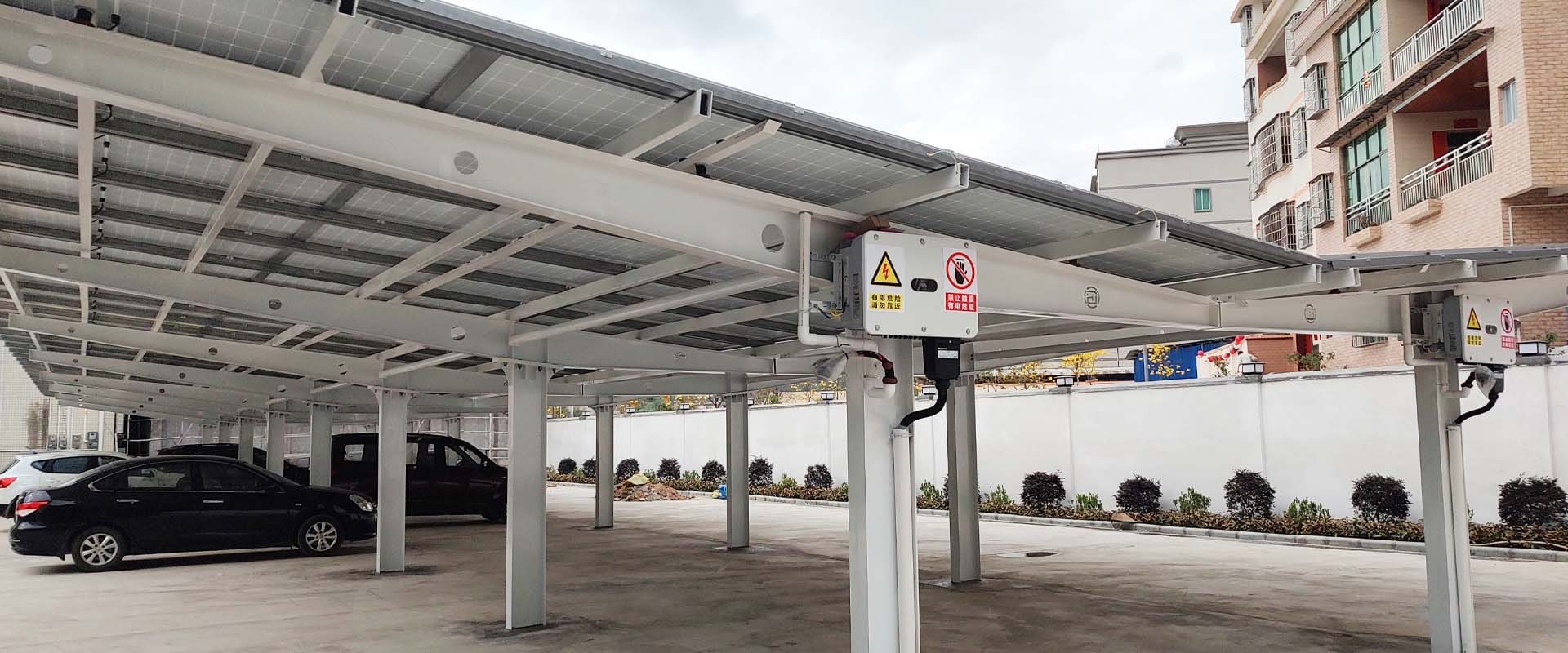

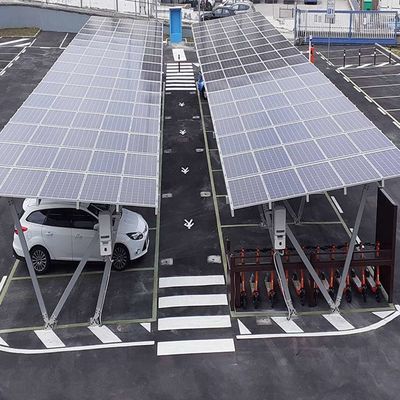

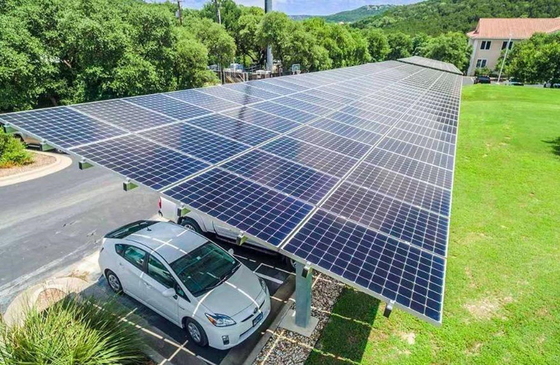

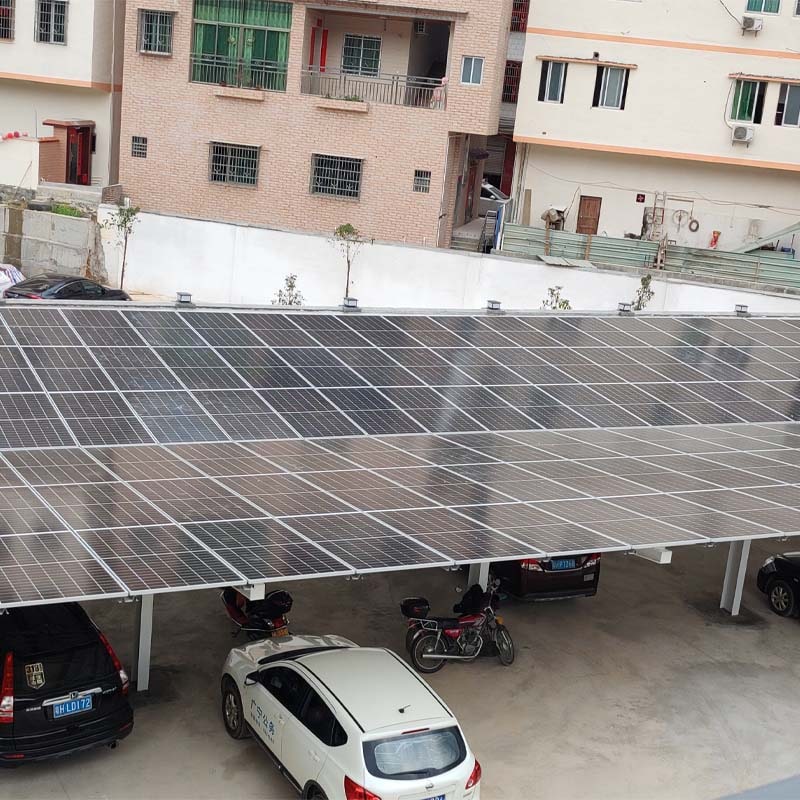

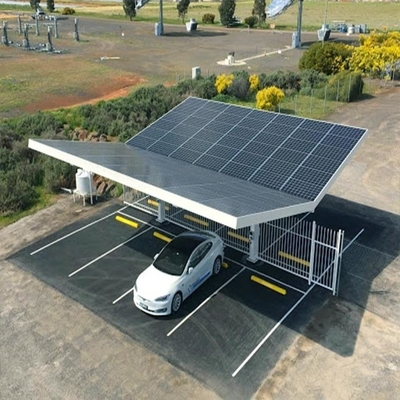

Project Cases



I-beam steel Bracket for Carport Mounting SystemI-beam steel Bracket for Carport Mounting System

I-beam steel Bracket for Carport Mounting System
