In addition to utilising roof spaces, there is a growing popularity in applying solar PV to building facades.

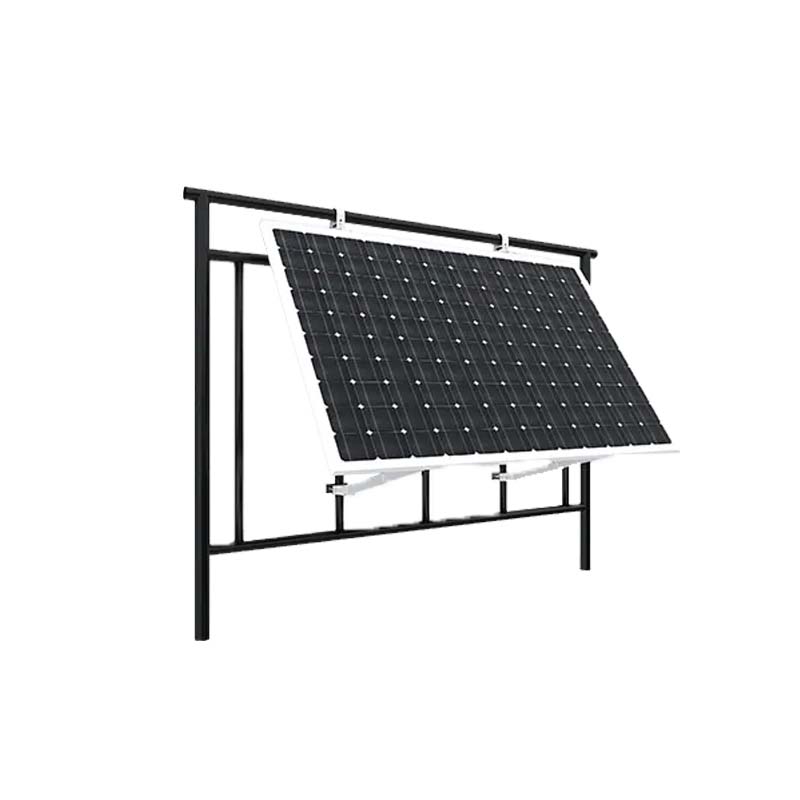

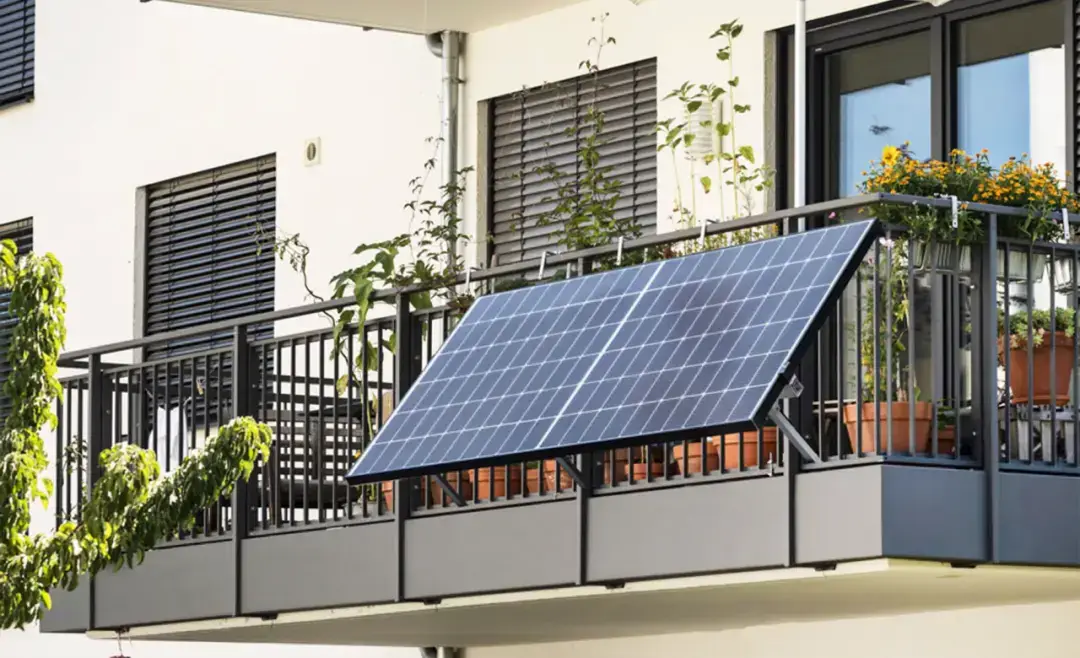

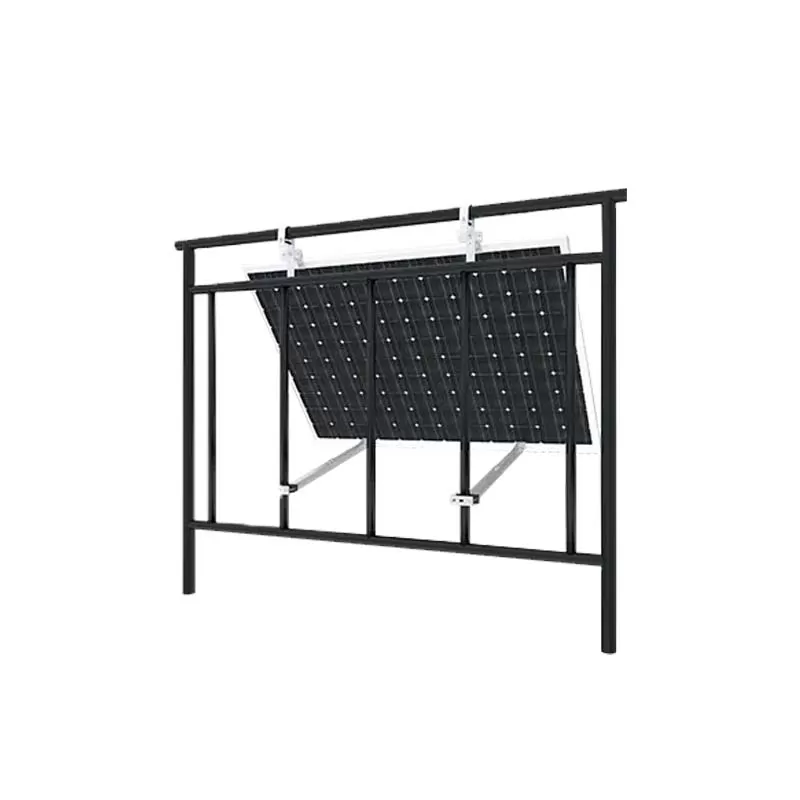

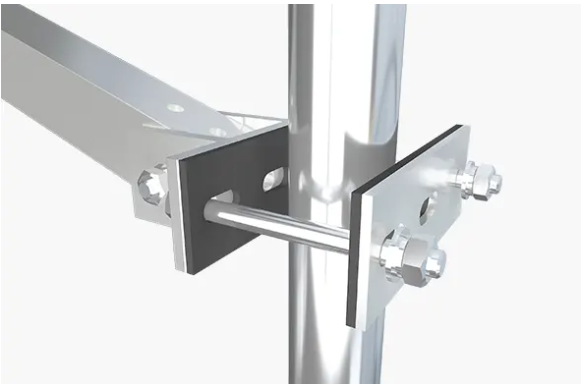

The MRac balcony solar mounting system is a product that is installed on balcony railings and allows for the easy construction of small home PV plants on balconies. Installation and removal are very simple and quick; the installation can be completed by 1-2 people. The system is bolted and fixed, so there is no need for welding or drilling during installation.
| Technical Data | |
| Type | Balcony Mounting System |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frameless |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |

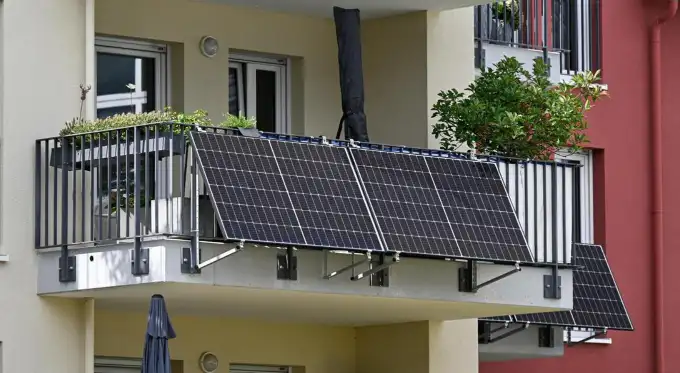

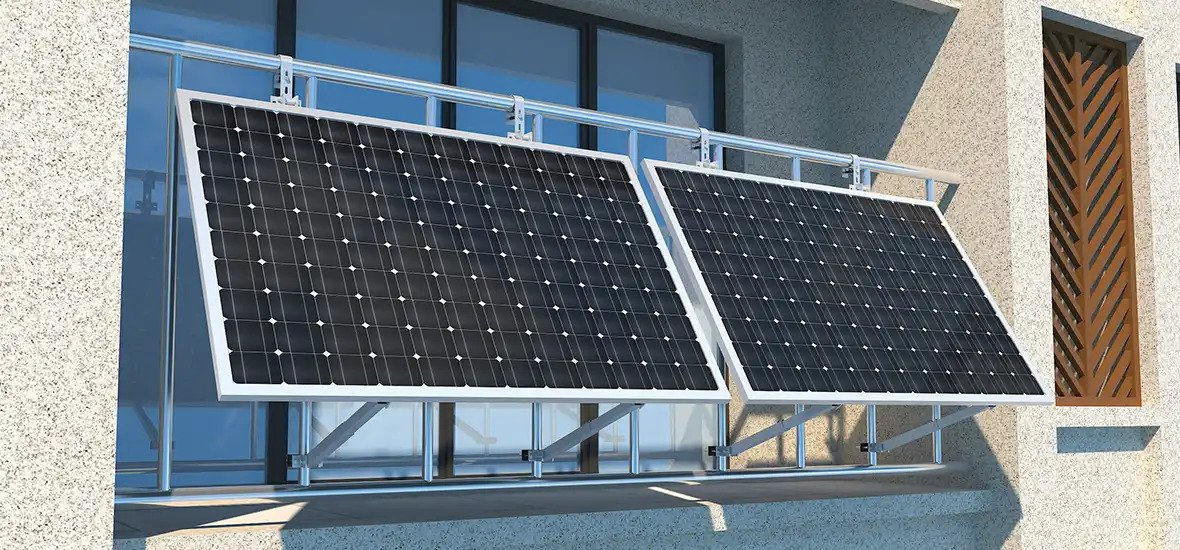

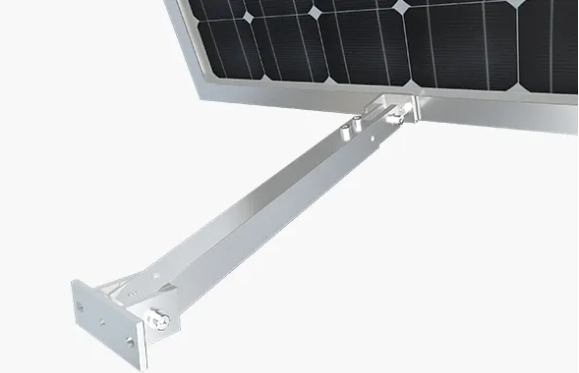

Single-row and double-row installation structures can be freely combined, and the installation angle can also be adjusted between 0 and 30 degrees to meet the needs of horizontal or vertical solar panel installation. The PV mounting system is compatible with all major components on the market
Thanks to the large adjustment range of the mounting system, the frame can accommodate most common sizes of balconies) and can be easily installed by 1-2 people.
Constructive consideration of the low design loads of balconies.

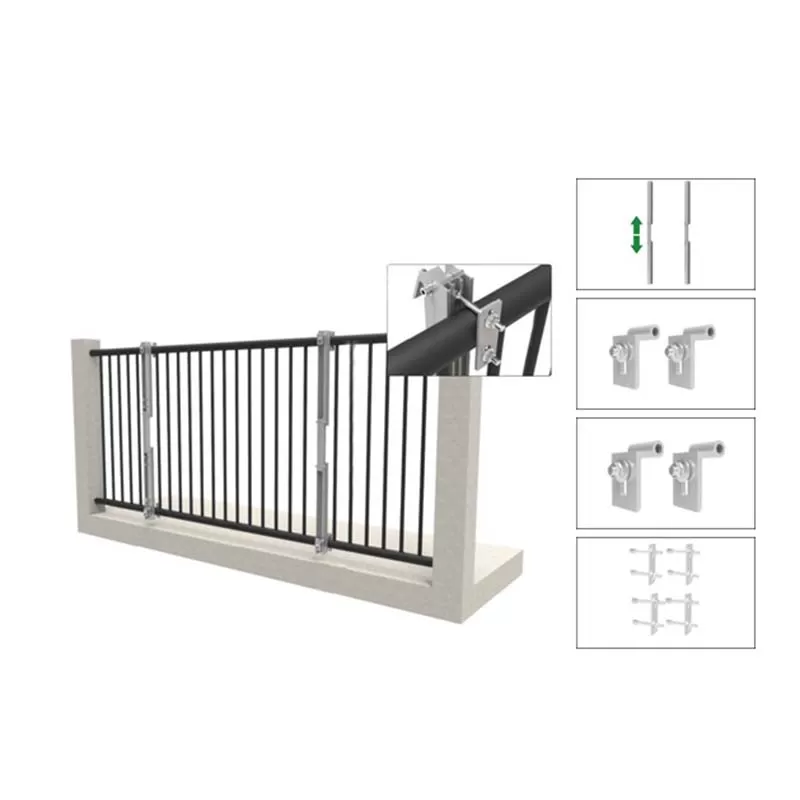

Particularly easy and risk-free attachment with rails attached to the modules that slide securely into the balcony mounting.
